Single Phase Power Controller
THV-10(20A, 30A, 45A, 60A, 80A, 100A)



  • Maximum load capacity: 20A AC, 30A AC, 45A AC, 60A AC, 80A AC, 100A AC
  • Supply voltage: 100 to 240V ac
  • Control method: Phase control, Zero-cross control
  • RKC Loader communication is available
  • Serial communication is available
  • Analog retransmission output is available
  • Easy setup using keypad and front display
  • Conforming to UL and CE Marking
  • NEW
  • Temperature
Download
  • Main features
  • Main specification
  • External dimensions

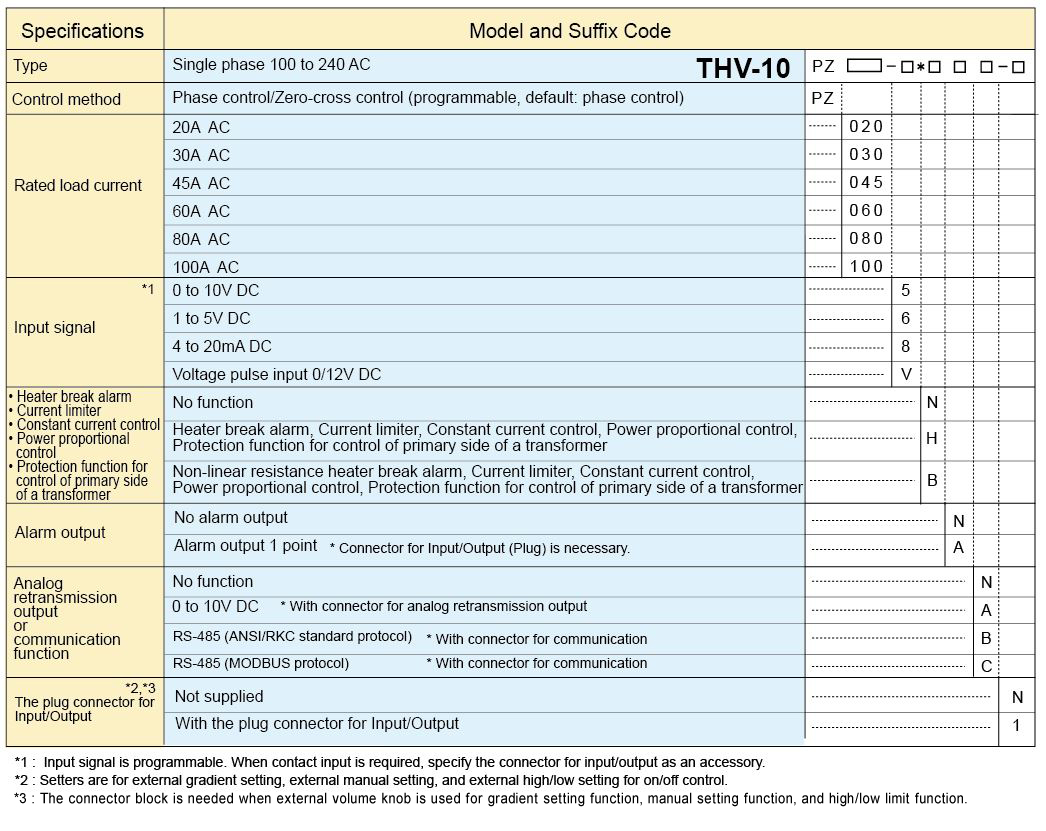

  • Models

Main features

Configuration and data logging can be done via host communication.

  • RS-485 serial communication is available. (Option)
  • Possible to be connected to a PLC or network device for configuration or data logging purposes.

Possible to be connected to other instruments via analog retransmission output

  • Analog retransmission output is available (Option)
  • Effective values can be output, so THV-10 can be easily connected to measuring instruments such as recorders and digital indicators.

Easy data management via RKC Loader Communication.

  • RKC Loader Communication function is equipped as standard.
  • Possible to use RKC communication converters COM-KG to connect to a PC via USB. Various settings and backup files can easily be saved to your PC and upload them to your THV-10 from your PC.

*RKC Loader Communication function is for THV-10 configuration only. Do not use for control or process purpose.

Various useful functions are equipped as standard

  • Various useful functions are equipped as standard such as Auto/Manual selection, Gradient setting, Soft-up/Soft-down, Contact input, ON/OFF control, RKC Loader Communication.

50% Lighter in weight(*)

  • The 20A/30A type has achieved a significant reduction in weight. The realization of weight reduction in a control panel and control box.

(*)Comparison with RKC THV-1 (20A, 30A)

Eliminates the restriction of the magnetic flux density of transformer and realizes miniaturization (Optional)

  • Primary side control function of the transformer can suppress excessive current that may arise due to momentary power failure of the load (transformer). To control the primary side of the transformer, use this Primary side control function of the transformer. It will eliminate the restriction of the magnetic flux density.

Capable to detect a heater break of non-linear load

  • A maximum of three inflexion points are settable according to the heater characteristics.
  • This enables the controller to be used with a lamp heater which has large resistance fluctuation by temperature.
  • Automatic setting of Inflexion points is available.

Main specification

  • Maximum load capacity: 20A AC, 30A AC, 45A AC, 60A AC, 80A AC, 100A AC
  • Control method: Phase control / Zero-cross control (switchable)
  • Applicable load:

a) Phase control: Linear load, transformer primary side control (magnetic flux density approx. 1.25T or less) *1 See transformer primary side control protection function
b) Zero-cross control: Linear load

  • Input signal:

a) 4〜20mA DC (Impedance:50Ω)
b) 1〜5V DC (Impedance:30kΩ)
c) 0〜10V DC (Impedance:30kΩ)
d) 0/12V DC (Impedance:30kΩ)

  • Output mode:

a) Phase angle proportional, Voltage proportional, Proportional square voltage
b) Constant current control, Constant power control
* a)Standard,  b)Option

  • Power supply frequency: 50/60Hz (automatically selected)
  • Standard functions:

a) Auto/Manual switch (External manual setting is available as an option)
b) Ramp setting function (External setting is available as an option)
c) Soft-start/Soft-end function:0.0〜199.9s
d) Contact inout(DI):1 point, non-voltage input

(can be used to switch between RUN/STOP,Auto/Manual,Phase control/Zero-cross control, Soft-start/Soft-end function ON/OFF, Setting Lock/Unlock, Over current alarm ON/OFF)

e) ON/OFF control (External setter unit is available as an option)
f) RKC Loader Communication: Possible to use RKC COM-KG via RKC communication protocal

  • Optional functions:

a) Alarm output: 1 point

Output: Sink type open collector output, allowable current: 100mA, voltage: ≦30V DC
*Energized/non-energized are available (FAIL alarm is only available with non-energized alarm)
(can choose from heater break alarm, thyristor breakdown alarm, power frequency abnormal alarm, over current alarm, or FAIL alarm.)

b) Heater break alarm

Current measuring accuracy:
20A/30A : ±1.5A (Current measurement 20A of less: ±1.2A, Current measurement 10A or less: ±1.0A)
45A/60A/80A/100A : ±5% of rated load current

c) Load current limiter

Setting range: 20A,30A︓0.0〜32.0A、45A︓0.0〜55.0A、60A︓0〜70A、80A︓0〜90A、100A︓0〜110A

d) Analog retransimission

Output volatage: 0〜10V DC(Load resistance >1kΩ)

e) Communication function

Interface: EIA RS-485 Standard
Protocol:RKC Communication(ANSI X3.28-1976 sub category 2.5 A4 Standard)、MODBUS-RTU
Communication speed︓9600,19200,38400,57600BPS

General specification

  • Ambient temperature: Operation guarantee range -15 to +55°C
  • Power supply voltage: 85〜264V AC(Including supply voltage variation)Rating:100 to 240V AC
  • Weight:

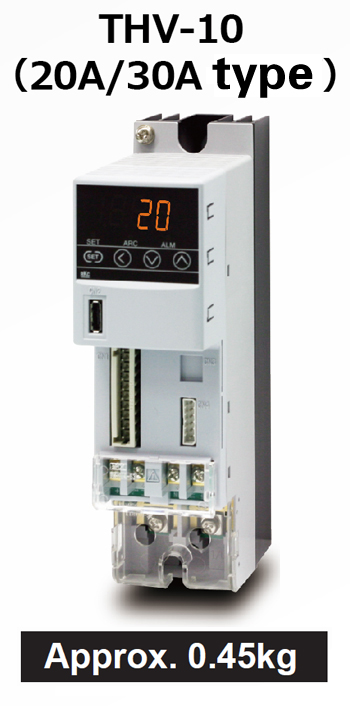

Approximately 0.45kg(20A, 30A)
Approximately 1.2kg(45A, 60A)
Approximately 1.8kg(80A, 100A)

  • Safety standards:

UL UL508 (File No. E177758)

cUL C22.2 No.14 (File No. E177758)

  • CE Mark *2:

Low Voltage︓EN60947-4-3 (Form 4) Rate absolute voltage: 690 V
EMC︓ EN60947-4-3 (Form 4)
RoHS︓EN50581



*1:Protection function for primary side control of transformer.

To control the primary side of the transformer, it is recommended to use a power controller with a protection function for the primary side control of a transformer. The control function of the primary side of transformer can suppress excessive current generated from momentary power failure on the load (transformer) side.

When the protection function for the primary side control of transformer is not provided, excessive current may occur. Please be sure to use the transformer with magnetic flux density 1.25T or less. Please also be sure to activate the Soft-start function.



*2:CE Marking

Use the designated noise filter to cpmply CE marking.

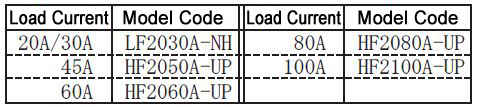

The designated noise filter: SOSHIN ELECTRIC CO., LTD. (This filter is prepared by the user.)
