Network communication converter
COM-J series

*Image of COM-JL

COM-JC

  • Converter for connecting SRZ series and FB series to CC-Link.



COM-JH

  • Converter for connecting SRZ series and FB series to DeviceNet.



COM-JL

  • Converter for connecting SRZ series and FB series to MODBUS/TCP.



COM-JG

  • Converter for connecting FB series to PROFIBUS.
  • Communication
Download
  • Main features
  • Main specification
  • External dimensions
  • Models

Main features

COM-JC
Ethernet(CC-Link)Communication Converter

Converter for connecting SRZ series and FB series to CC-Link.

Supported models: SRZ(Z-TIO-A / Z-TIO-B、Z-DIO) FB100 / FB400 / FB900

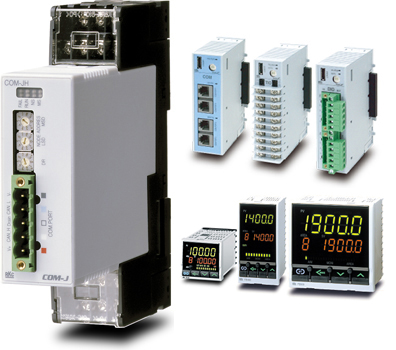

COM-JH
DeviceNet Communication Converter

Converter for connecting SRZ series and FB series to DeviceNet.

Supported models: SRZ(Z-TIO-A / Z-TIO-B、Z-DIO) FB100 / FB400 / FB900

EDS Files for DeviceNet, please click here.

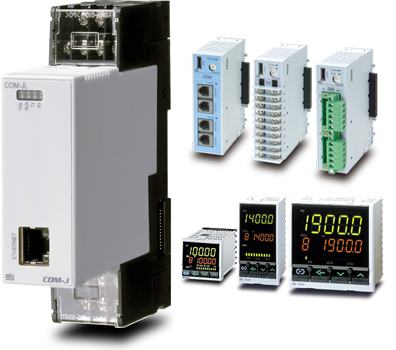

COM-JL
Ethernet(MODBUS/TCP)Communication Converter

Converter for connecting SRZ series and FB series to Ethernet (MODBUS/TCP).

Supported models: SRZ(Z-TIO-A / Z-TIO-B、Z-DIO) FB100 / FB400 / FB900

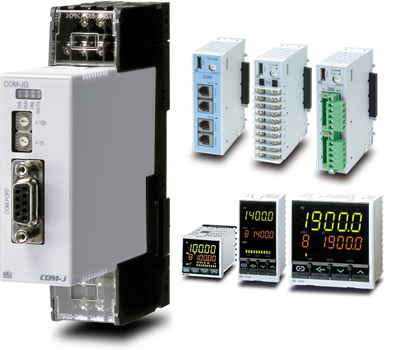

COM-JG
PROFIBUS Communication Converter

Converter for connecting FB series to PROFIBUS.

Supported models: SRZ(Z-TIO-A / Z-TIO-B、Z-DIO) FB100 / FB400 / FB900

GSD files for PROFIBUS, please click here.

Main specification

COM-JC(CC-Link)

  • Network communication
    Connection method: Conforming to CC-Link Ver.2.00/Ver.1.10
    Communication speed: 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps
    Station number: 1 to 61 (4 stations occupied 1 time, 4 stations occupied 2 times, 4 stations occupied 4 times), 1 to 64 (1 station occupied 1 time)
    ※Only SRZ supports 4 stations occupied 4 times.
  • Controller communication
    Interface: RS-485
    Protocol: MODBUS-RTU
    Communication speed: 9600 bps, 19200 bps, 38400 bps
    Maximum connection: 31
  • General Specification
    Power supply voltage (Rating): 24V DC
    Ambient temperature: -10 to 50°C
    Weight: Approx.220g
    Safety standards:
    1) UL UL61010-1
    2) cUL CAN/CSA-22.2 NO.61010-1
    3) CE Marking: Low Voltage Directive (LVD) EN61010-1                                                                                                                   EMC Directive EN61326-1
    4) RCM EN55011

COM-JH(DeviceNet

  • Network communication
    Protocol: DeviceNET conformant
    Communication method: Multidrop method, T-branch connection
    ※Termination resistor (121Ω,1/4W) is required.
    Communication speed: 125 kbps, 250 kbps, 500 kbps
    Error control: CRC error, Node address (MAC ID) duplication check
    Maximum number of connection nodes: 64 (including Master
  • Controller communication
    Interface: RS-485
    Protocol: MODBUS-RTU
    Communication speed: 9600 bps, 19200 bps, 38400 bps
    Maximum connection: 31
  • General Specification
    Power supply voltage (Rating): 24V DC
    Ambient temperature: -10 to 50°C
    Weight: Approx.170g (open connector type), 220g (microconnector type)
    Safety standards:
    1) UL UL61010-1
    2) cUL CAN/CSA-22.2 NO.61010-1
    3) CE Marking: Low Voltage Directive (LVD) EN61010-1                                                                                                                   EMC Directive EN61326-1
    4) RCM EN55011

COM-JL(MODBUS/TCP)

  • Network communication
    Physical layer: Ethernet 10BASE-T/100BASE-TX (automatic recognition)
    Application layer: MODBUS/TCP
    Communication data: Conforming to MODBUS message formats.
  • Controller communication
    Interface: EIA RS-485
    Protocol: MODBUS-RTU
    Communication speed: 9600 bps, 19200 bps, 38400 bps
    Maximum connection: 31
  • General Specification
    Power supply voltage (Rating): 24V DC
    Ambient temperature: -10 to 50°C
    Weight: Approx.180g
    Safety standards:
    1) UL UL61010-1
    2) cUL CAN/CSA-22.2 NO.61010-1
    3) CE Marking: Low Voltage Directive (LVD) EN61010-1                                                                                                                   EMC Directive EN61326-1
    4) RCM EN55011

COM-JG(PROFIBUS)

  • Network communication
    Protocol: PROFIBUS-DP
    Communication speed: 9600 bps, 19200 bps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 12 Mbps
    Maximum connection of nodes: 1 to 126
  • Controller communication
    Interface: RS-485
    Protocol: MODBUS-RTU
    Communication speed: 9600 bps, 19200 bps, 38400 bps
    Maximum connection: 31
  • General Specification
    Power supply voltage (Rating): 24V dc
    Ambient temperature: -10 to 50°C
    Weight: Approx.170g
    Safety standards:
    1) UL UL61010-1
    2) cUL CAN/CSA-22.2 NO.61010-1
    3) CE Marking: Low Voltage Directive (LVD) EN61010-1                                                                                                                   EMC Directive EN61326-1
    4) RCM EN55011

External dimensions

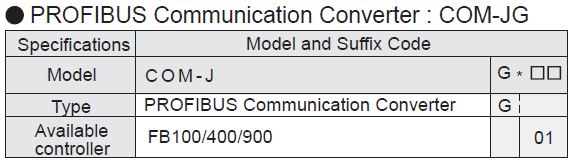

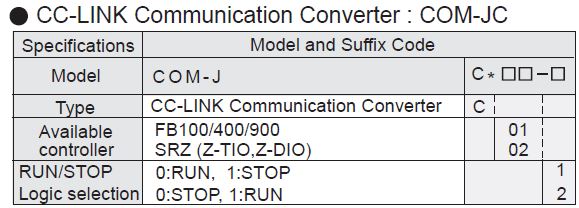

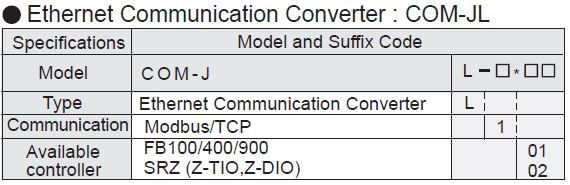

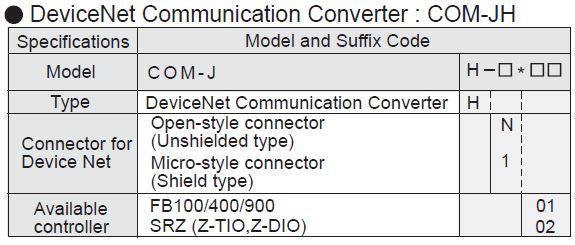

Models
