GZ series(GZ400 / GZ900)
![](https://www.rkcinst.co.jp/english/wp-content/uploads/sites/2/2020/02/gz_01_22_01-1.jpg)
- Universal Input
(Selectable from Thermocouple, RTD Pt100, Voltage, Current) - Measurement accuracy: ±0.1% of displayed value
- Sampling time: 0.01 sec.
- 11-segment 5 digit LCD display
- Front loader communication port
- Dual input function
- Plug-in construction
![](https://www.rkcinst.co.jp/english/wp-content/uploads/sites/2/2019/01/cemark52.jpg)
- NEW
- Temperature
- Process
- High speed
- Main features
- Main specification
- External dimensions
- Models
Main features
High Speed Sampling Time 10ms
Feedback control with 100 samplings per second enables controlling a fast changing process that was difficult to control. Such applications include pressure, flow rate, and pulse heat.
Front loader communication port
All models are equipped with a front loader communication port for improved maintainability Configuration data management software (PROTEM2) is available

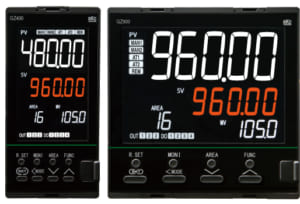

Large high intensity LCD display
![](https://www.rkcinst.co.jp/english/wp-content/uploads/sites/2/2020/02/gz_01_22_01-1.jpg)
Large easy-to-read PV display on a compact front panel
2 inputs for various applications
![](https://www.rkcinst.co.jp/english/wp-content/uploads/sites/2/2020/02/gze_05_22_01.jpg)
2CH (Dual loop) control
Dual loop control is available on a single controller.
PV select function
Input 1 and Input 2 are switched over at a preset level.
Differential temperature control
This is a function to control to maintain the difference between PV1 and PV2 is kept constant.
Further advanced control performance and function
![](https://www.rkcinst.co.jp/english/wp-content/uploads/sites/2/2019/07/fz_05_01_01e.jpg)
Proactive function is supplied to suppress overshoot and bottom (lowering amount)
Versatile customizable information display
Three-stage display shows abundant information.
Parameter select function enables displaying necessary parameters only.
Main specification
- Number of Inputs : Max.2 points
- Input type (Universal input) : ※See the Input Range Code for the input range.
1)Thermocouple : K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII
2)RTD: Pt100 and JPt100 (3-wire system)
3)DC voltage/current: 0 to 10mV, 0 to 100mV, 0 to 20mA, 4 to 20mA
4)DC voltage: 0 to 1V, 0 to 5V, 1 to 5V, 0 to 10V, -5 to +5V,-10 to +10V - Sampling time: 0.01 sec.
※0.1 second when the controller is used for Dual loop control or Control loop combination function. - Measurement accuracy : ±(0.1% of displayed value+1 digit) ※Depends on the input and the range.
- Output 1 (OUT1) ※Control, Event, HBA (Heater Break Alarm), LBA (Control loop break alarm) or analog retransmission are assigned.
1)Relay contact output (a): 1c contact ※Highly durable relay
2)Voltage pulse output for SSR driving: 0/12V dc
3)Current output : 0 to 20mA, 4 to 20mA dc
4)Continuous voltage output: 0 to 5V, 1 to 5V, 0 to 10V dc
5)Transistor output: Allowable load current: 100 mA
<Specification of Options>
- Output 2 (OUT2) ※Control, Event, HBA (Heater Break Alarm), LBA (Control loop break alarm) or analog retransmission can be assigned
1)Relay contact output (b): 1a contact ※Highly durable relay
2)Voltage pulse output for SSR driving: 0/12V dc
3)Current output : 0 to 20mA, 4 to 20mA dc
4)Continuous voltage output: 0 to 5V, 1 to 5V, 0 to 10V dc
5)Transistor output: Allowable load current: 100 mA - Output 3 (OUT3) ※Universal output
1) Voltage pulse output for SSR driving: 0/14 dc
2) Current output: 0 to 20mA, 4 to 20mA dc - Digital output (DO: max.4 points)
Relay contact output: 1a contact - Event function (max.4 points)
- Remote setpoint input
1) DC voltage input: 0 to 10mV, 0 to 100mV, 0 to 20mA, 4 to 20mA
2) DC voltage input: 0 to 1V, 0 to 5V, 1 to 5V, 0 to 10V, -5 to +5V, -10 to +10V - Event inputs (Max.6 points)
- Function of event inputs: RUN/STOP switching, AUTO/MAN switching, selecting Input 2, Interlock release, Peak/Bottom value release,
- Peak hold/Bottom hold release, Set Lock/Unlock, Direct/Reverse action, Memory area switching (with/without SET)
- Analog retransmission output (Max.1 point)
1) DC current input: 0 to 20mA, 4 to 20mA
2) DC voltage input: 0 to 5V, 1 to 5V, 0 to 10V - Communication: RS-422A / RS-485
<General Specification>
- Power supply voltage (Rating): 100 to 240V ac/24Vac/24Vdc
- Ambient temperature: -10 to +55°C
- Weight:
GZ400: Approx.221g
GZ900: Approx.291g
- Safety standards:
UL: UL61010-1
cUL: CAN/CSA-22.2 NO.61010-1
CE Marking:
Low Voltage Directive (LVD) EN61010-1
EMC Directive EN61326-1
RCM: EN55011
External dimensions
Unit : mm
Models
- Quick start code
Accessories (Sold separately)
CT :Current transformer for heater break alarm
Terminal Cover
Front Cover
