Digital controllers (Temperature controllers)
RB series(RB100 / RB400 / RB500 / RB700 / RB900)

  • Measurement accuracy: ±0.2% of displayed value
  • Sampling time: 0.25 sec.
  • 11-segment LCD Displayed
  • Loader communication
  • Plug-in construction
  • Temperature
Download
  • Main features
  • Main specification
  • External dimensions
  • Models

Main features

Up to four (4) set values can be registered

Up to four (4) set values can be registered / switched. Set value can be also switched by digital input.

Abundant Inputs/Outputs

Varieties of combinations of various optional inputs/outputs

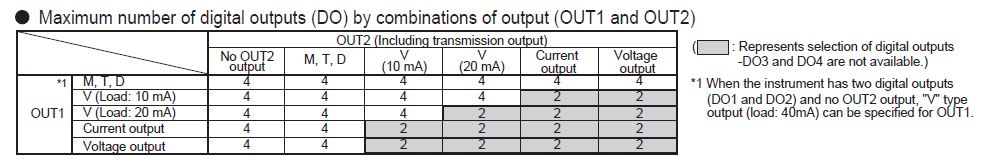

※The number of digital outputs depends on the model and the specifications.
※Analog output may not be available depending on the control type and the model.
※For RB100, either communication function or digital input must be selected.



Response speed can be changed

Response speed can be easily changed against the controllability obtained by Autotuning. nYour desired response can be selected from 6 stages.

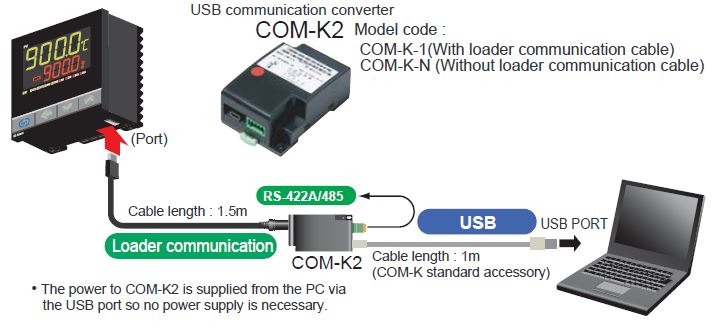

Loader communication as standard

All models now have a loader communication port.

Configuration data management software (PROTEM2) is available

Main specification

  • Number of input: 1 point
  • Input type: ※See the Input Range Code for the input range.

Group 1: Thermocouple K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII

Group 2: RTD Pt100,JPt100

  • Sampling time: 0.25 sec.
  • Measurement accuracy:±(0.2% of displayed value+1 digit) ※Depends on the input and the range.
  • Output (OUT1)

1) Relay contact output : 1a contact

2) Voltage pulse output for SSR driving: 0/12V dc

3) DC Current output : 0 to 20mA, 4 to 20mA DC

4) DC voltage output: 0 to 5V, 1 to 5V, 0 to 10V

5) Open collector output: Sink type

6) SSR (Triac) output : Current rating: 0.5A

<Specification of Options>

  • Outputs 2 and 3 (OUT2, 3)  ※Control, temperature alarm, heater break alarm, loop break alarm, FAIL can be assigned to output.

1) Relay contact output : 1a contact

2) Voltage pulse output for SSR driving: 0/12V dc

3) DC Current output : 0 to 20mA, 4 to 20mA dc

4) DC voltage output: 0 to 5V, 1 to 5V, 0 to 10V

5) Open collector output: Sink type

6) SSR (Triac) output : Current rating: 0.5A

  • Alarm function (max.4 points): Temperature alarm, Heater break alarm, Loop break alarm, FAIL
  • CT input for Heater Break Alarm : Max. 2 points
  • Analog retransmission output: Output type is the same as OUT1 ※The signal is produced from OUT2 terminal.
  • Digital input: Max.2 points
  • Communication interface: RS-485

<General Specification>

  • Power supply voltage (Rating): 100 to 240Vac/24Vac/24Vdc
  • Ambient temperature: 0 to 50°C
  • Weight:

RB100 Approx. 170g

RB400 Approx. 250g

RB500 Approx. 250g

RB700 Approx. 290g

RB900 Approx. 340g

  • Safety standards:UL UL61010-1

cUL CAN/CSA-22.2 NO.61010-1

CE Marking: Low Voltage Directive (LVD) EN61010-1

EMC Directive EN61326-1

RCM EN55011

External dimensions

Unit : mm









Models
