Ethernet Communication Converter
COM-ME series

*Image of COM-ME-1

COM-ME-1

  • Converter for connecting SRZ series, FZ series,  and GZ series to Ethernet(MODBUS/TCP).



COM-ME-2

  • Converter for connecting SRZ series to Ethernet(EtherNet/IP).



COM-ME-3

  • Converter for connecting SRZ series, FZ series,  and GZ series to EtherCAT.



COM-ME-6

  • Converter for connecting SRZ series to Ethernet.
  • Dedicated PLC communication protocol (MAPMAN) allows SRZ to connect to Mitsubishi PLC without programming (Programless).
  • NEW
  • Communication
Download
  • Main features
  • Main specification
  • External dimensions
  • Models

Main features

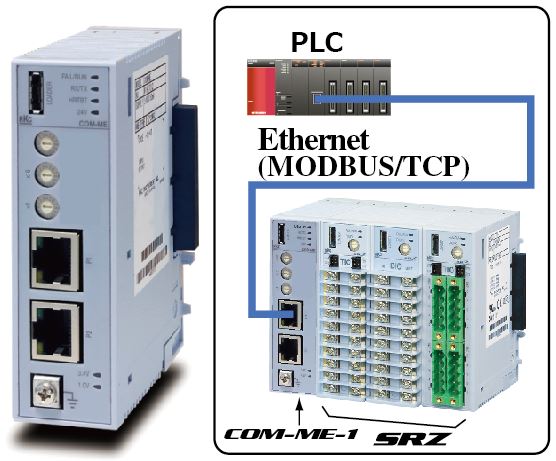

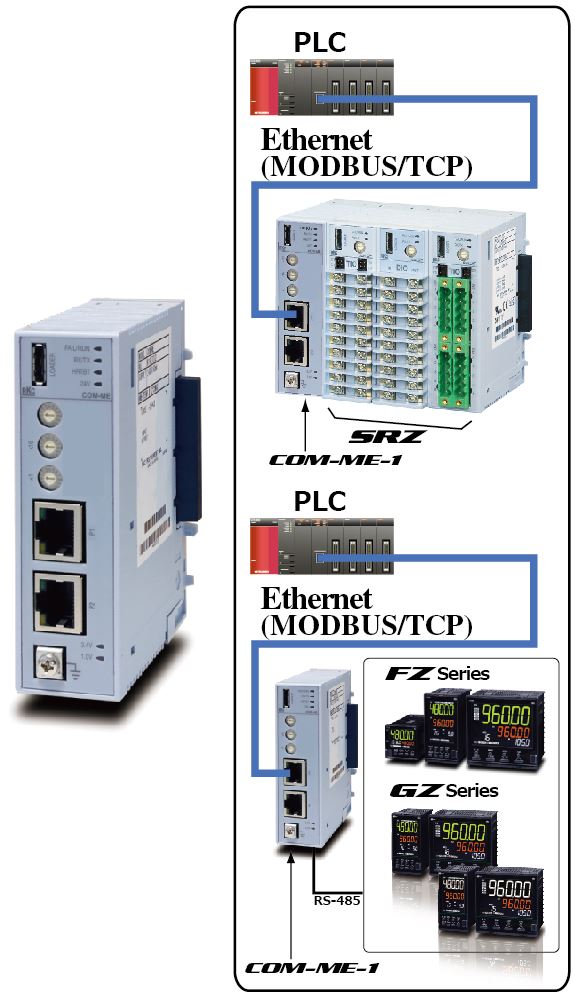

COM-ME-1
Ethernet(MODBUS/TCP)Communication Converter

Used to connect our SRZ series, FZ series, and GZ series to the MODBUS/TCP network.

  • Compatible models:
    SRZ (Z-TIO-A / Z-TIO-B, Z-DIO, Z-CT)
    FZ (FZ110 / FZ400 / FZ900)
    GZ (GZ400 / GZ900)
  • Connect a maximum of 16 modules (64 channels) of SRZ controllers (For example, Z-TIO-A) can be connected to the MODBUS/TCP network.
  • Connect a maximum of 31 units of FZ/GZ controllers (32 channels) can be connected to the MODBUS/TCP network.

    For the details of the SRZ series, please click here.
    For the details of the FZ series, please click here.
    For the details of the GZ series, please click here.







COM-ME-2
Ethernet(EtherNet/IP)Communication Converter

Converter for connecting SRZ series to Ethernet(EtherNet/IP).

  • Supported models: SRZ (Z-TIO-A / Z-TIO-B, Z-DIO, Z-CT)
  • This model can be connected to the SRZ modular controller via Ethernet (a maximum of 16 Z-TIO-A modules: 64 channels)

    EDS files for Ethernet/IP, please click here.
    For the details of the SRZ series, please click here.

COM-ME-3
Ethernet(EtherCAT) Communication Converter

Used to connect our SRZ series, FZ series, and GZ series to the EnterCAT network.

  • Compatible models:
    SRZ (Z-TIO-A / Z-TIO-B, Z-DIO, Z-CT)
    FZ (FZ110 / FZ400 / FZ900)
    GZ (GZ400 / GZ900)
  • Connect a maximum of 16 modules (64 channels) of SRZ controllers (For example, Z-TIO-A) can be connected to the EtherCAT network.
  • Connect a maximum of 31 units of FZ/GZ controllers (32 channels) can be connected to the EtherCAT network.

    ESI files for EtherCAT, please click here.
    For the details of the SRZ series, please click here.
    For the details of the FZ series, please click here.
    For the details of the GZ series, please click here.



COM-ME-6
Ethernet(Ethernet MAPMAN) Communication Converter

Converter for connecting SRZ series to Ethernet.
Supported models: SRZ (Z-TIO-A / Z-TIO-B, Z-DIO, Z-CT)

  • Dedicated PLC communication protocol (MAPMAN) allows SRZ to connect to Mitsubishi PLC without programming (Programless).
  • This model can be connected to the SRZ modular controller via Ethernet (a maximum of 16 Z-TIO-A modules: 64 channels)

    For the details of the SRZ series, please click here.





Main specification

COM-ME-1MODBUS/TCP

  • MODBUS/TCP communication

Physical layer :100BASE-TX

User layer  :MODBUS/TCP

Port spec   :RJ-45 x 2 port

IP Address :0.0.0.0~255.255.255.255

*Local backloop address (127.0.0.1~127.255.255.254)can not be used.

Subnet mask  :0.0.0.0~255.255.255.255

  • Host communication or Controller communication
    SRZ: Host communication
    FZ100 / FZ400 / FZ900, GZ400 / GZ900: Controller communication

Interface: RS-485
Communication speed: 9600 bps, 19200 bps, 38400 bps, 57600 bps
Protocol:
1) ANSI X3.28-1976 subcategories 2.5 and B1
2) MODBUS-RTU

Maximum connections:

   SRZ: Maximum 30 modules in a combination of

     Z-TIO + Z-DIO + Z-CT; the module number of

     Z-DIO and Z-CT varies depending on the

     total number of Z-TIO modules

     (maximum 16 Z-TIO modules per connection).

   FZ100 / FZ400 / FZ900, GZ400 / GZ900: Maximum 31 units.

  • Loader communication

Communication speed: 38400 bps
Maximum connections: 1 unit
Connection with a loader communication cable for our USB converter COM-KG(sold separately).

  • General Specification

Power supply voltage : 24V DC
Allowable ambient temperature: -10 to +55°C
Weight : Approx. 150 g
Safety standards:
1) UL : UL61010-1
2) cUL : CAN/CSA-22.2 NO.61010-1
3)CE Marking:

EMC Directive : EN61326-1
RoHS Directive : EN IEC 63000

4) RCM : EN55011



COM-ME-2(EtherNet/IP

  • EtherNet/IP communication

Physical layer :10BASE-T/100BASE-TX Automatic recognition

User layer  :EtherNet/IP

Port spec   :RJ-45 x 2 port

IP Address :0.0.0.0~255.255.255.255

*The IP address 127.0.0.1 is reserved as the loopback address.

Subnet mask  :0.0.0.0~255.255.255.255

  • Host communication

Interface: RS-485

Communication speed: 9600 bps, 19200 bps, 38400 bps, 57600 bps
Protocol:
1) ANSI X3.28-1976 subcategories 2.5 and B1
2) MODBUS-RTU

Maximum connections: 31 units (Including Z-TIO, Z-DIO, Z-CT unit)

  • Loader communication

Communication speed: 38400 bps
Maximum connections: 1 unit
Connection with a loader communication cable for our USB converter COM-KG(sold separately).

  • General Specification

Power supply voltage : 24V DC
Allowable ambient temperature: -10 to +55°C
Weight : Approx. 150 g
Safety standards:
1) UL : UL61010-1
2) cUL : CAN/CSA-22.2 NO.61010-1
3)CE/UKCA Marking:

EMC Directive : EN61326-1
RoHS Directive : EN IEC 63000

4) RCM : EN55011



COM-ME-3(EtherCAT)

  • EtherCAT communication

Device type : No profile
Physical layer: 100BASE-TX
User layer: EtherCAT
Correspondence protocol: CAN application protocol over EtherCAT (CoE)
Communication object: SDO, PDO
Connector type: RJ-45 (2 ports)
PDO data length : Max. 1024byte  Both RxPDO (Output) and TxPDO (Input)
Synchronous mode : Free Run

  • Host communication or Controller communication
    SRZ: Host communication
    FZ100 / FZ400 / FZ900, GZ400 / GZ900: Controller communication

Interface: RS-485
Communication speed: 9600 bps, 19200 bps, 38400 bps, 57600 bps
Protocol:
1) ANSI X3.28-1976 subcategories 2.5 and B1
2) MODBUS-RTU
Maximum connections:

SRZ: Maximum 30 modules in a combination of

Z-TIO + Z-DIO + Z-CT; the module number of
Z-DIO and Z-CT varies depending on the
total number of Z-TIO modules
(maximum 16 Z-TIO modules per connection).

FZ100 / FZ400 / FZ900, GZ400 / GZ900: Maximum 31 units.

  • Loader communication

Communication speed: 38400 bps
Maximum connections: 1 unit
Connection with a loader communication cable for our USB converter COM-K2(sold separately).

  • General Specification

Power supply voltage : 24V DC
Allowable ambient temperature: -10 to +55°C
Weight : Approx. 150 g
Safety standards:
1) UL UL61010-1
2) cUL CAN/CSA-22.2 NO.61010-1

3)CE Marking:

EMC Directive : EN61326-1
RoHS Directive : EN IEC 63000

4) RCM : EN55011



COM-ME-6(Ethernet MAPMAN

  • Ethernet MAPMAN communication

Physical layer :10BASE-T/100BASE-TX Automatic recognition

 *Only 100BASE-TX can be used under Daisy Chain network

User layer  :TCP/IP,Dedicated Mitsubishi PLC protocol

Port spec   :RJ-45 x 2 port

IP Address :0.0.0.0~255.255.255.255

 *Local backloop address (127.0.0.1~127.255.255.254)can not be used.

Subnet mask  :0.0.0.0~255.255.255.255

  • Host communication

Interface: RS-485
Communication speed: 9600 bps, 19200 bps, 38400 bps, 57600 bps
Protocol:
1) ANSI X3.28-1976 subcategories 2.5 and B1
2) MODBUS-RTU
Maximum connections: 31 units (Including Z-TIO, Z-DIO, Z-CT unit)

  • Loader communication

Communication speed: 38400 bps
Maximum connections: 1 unit
Connection with a loader communication cable for our USB converter COM-K2(sold separately).

  • General Specification

Power supply voltage : 24V DC
Allowable ambient temperature: -10 to +55°C
Weight : Approx. 150 g
Safety standards:
1) UL UL61010-1
2) cUL CAN/CSA-22.2 NO.61010-1

3)CE Marking:

EMC Directive : EN61326-1
RoHS Directive : EN IEC 63000

4) RCM : EN55011

External dimensions

(Unit:mm)

* This drawing is COM-ME-3. The COM-ME series are same dimensions.

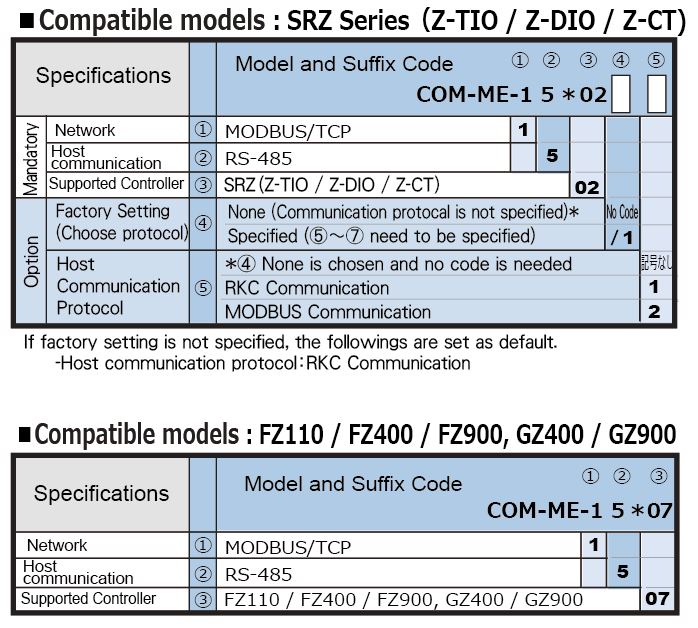

Models

COM-ME-1



COM-ME-2



COM-ME-3



COM-ME-6
