Main features

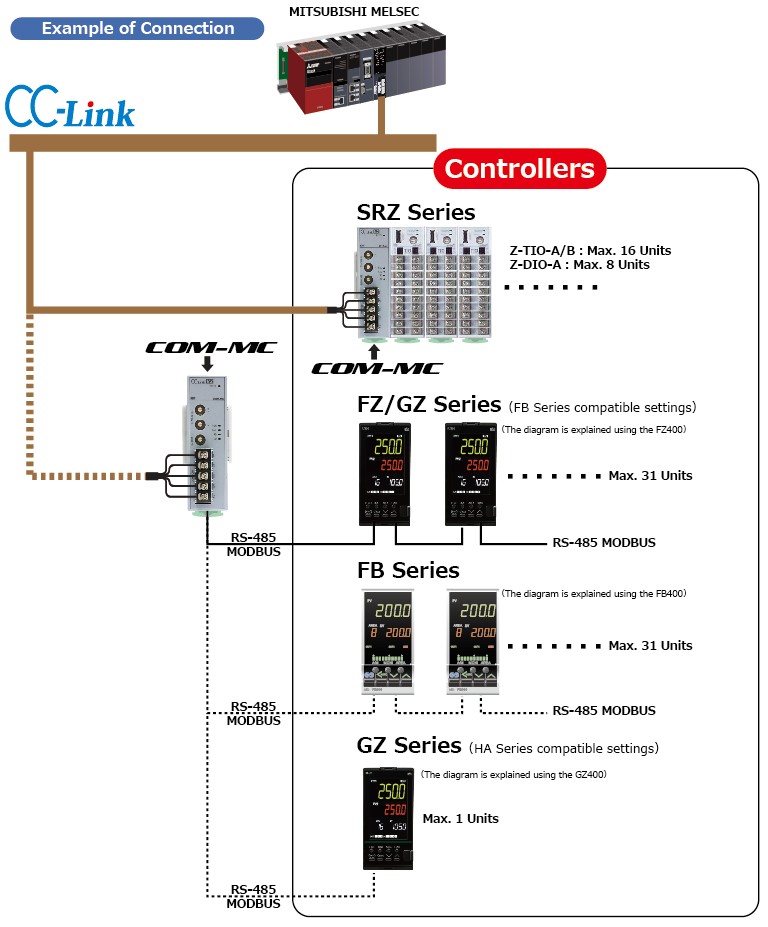

CC-Link Communication Converter

• Converter for connecting SRZ series, FZ series, GZ series, and FB series to CC-Link.


Main specification

• CC-Link communication
  Connection method: Conforming to CC-Link Ver.2.00/Ver.1.10
  Communication speed: 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps
  Station number: 1 to 61 (4 stations occupied 1 time, 4 stations occupied 2 times, 4 stations occupied 4 times), 1 to 64 (1 station occupied 1 time)
  ※Only SRZ supports 4 stations occupied 4 times.
• Controller communication
  Interface: RS-485
  Protocol: MODBUS-RTU
  Communication speed: 9600 bps, 19200 bps, 38400 bps, 57600bps
  ※Only FZ/GZ series supports 57600bps.
  Maximum connection:

SRZ series:

Z-TIO-A/B: 16
Z-DIO-A: 8

FZ/GZ/FB series: 31

• General Specification
  Power supply voltage (Rating): 24V DC
  Ambient temperature: 0 to 55°C
  Weight: Approx.130g
  Safety standards:
  1) UL　UL61010-1
  2) cUL　CAN/CSA-22.2 NO.61010-1
  3) CE Marking:

Low Voltage Directive (LVD)　EN61010-1
EMC Directive　EN61326-1
RoHS　EN IEC 63000

4) RCM:　EN55011

5) KC Mark:

KS C 9610-6-2
KS C 9610-6-4

External dimensions

(Units : mm)

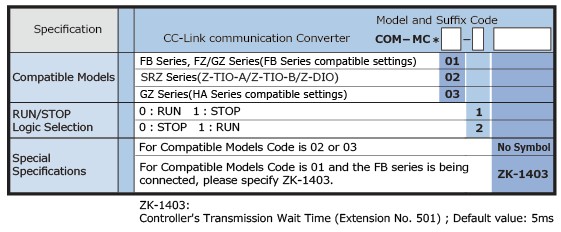

Models
