Main features

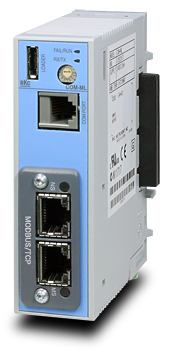

COM-ML-1
Ethernet（MODBUS/TCP、Ethernet MAPMAN）Communication Converter

Converter for connecting SRZ series to MODBUS/TCP.
Ethernet MAPMAN (Protocol exclusive for PLC) enables programming-free connection to Mitsubishi PLC.

Supported models: SRZ (Z-TIO-A / Z-TIO-B / Z-TIO-C / Z-TIO-D, Z-DIO, Z-CT)

COM-ML-2

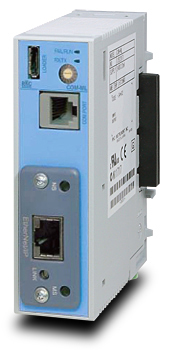

EtherNet/IP Communication Converter

Converter for connecting SRZ series to EtherNet/IP.

Supportedmodels: SRZ (Z-TIO-A / Z-TIO-B, Z-DIO)

COM-ML-3
EtherCAT Communication Converter

Converter for connecting SRZ series to EtherCAT.

Supported models: SRZ (Z-TIO-A / Z-TIO-B, Z-DIO)

COM-ML-4
PROFINET Communication Converter (NEW)

Converter for connecting SRZ series to PROFINET.

Supported models: SRZ (Z-TIO-A / Z-TIO-B, Z-DIO)

Main specification

COM-ML-1（MODBUS/TCP・Ethernet MAPMAN）

• Network Communication
  1.Modbus/TCP
  Physical layer: 10BASE-T/100BASE-TX (automatic recognition)
  User layer: MODBUS/TCP
  Communication data: Equivalent to the host communication (MODBUS) map.
  2.MAPMAN
  Physical layer: 10BASE-T/100BASE-TX (automatic recognition)
  User layer: TCP/IP, Mitsubishi QnA compatible 3E frame/SLMP ASCII or binary
• Host communication
  Interface: RS-485 / RS-422A
  Protocol: RKC standard communication (ANSI), MODBUS-RTU
  Maximum connection: 16
• General Specification
  Power supply voltage (Rating): 24V dc
  Ambient temperature: -10 to 50°C
  Weight: Approx.130g

COM-ML-2（EtherNet/IP）

• Network communication
  EtherNet/IP
  Physical layer: 10BASE-T/100BASE-TX (automatic recognition)
  User layer: EtherNet/IP
  Supported messaging: Explicit messaging, I/O messaging
• Host communication
  Interface: RS-485 / RS-422A
  Protocol: RKC standard communication (ANSI), MODBUS-RTU
  Maximum connection: 16
• General Specification
  Power supply voltage (Rating): 24V dc
  Ambient temperature: -10 to 50°C
  Weight: Approx.130g
  Safety standards:
  1) UL　UL61010-1
  2) cUL　CAN/CSA-22.2 NO.61010-1
  3) CE Marking: Low Voltage Directive (LVD)　EN61010-1                                                                                                                   EMC Directive　EN61326-1
  4) RCM　EN55011

COM-ML-3（EtherCAT）

• Network communication
  EtherCAT
  Physical layer: 100BASE-TX
  User layer: EtherCAT
  Supported protocols: CANopen over EtherCAT (CoE),
  Process Data Object: SDO, PDO
  Conformance test version: Ver. 1.0.0.17
• Host communication
  Interface: RS-485 / RS-422A
  Protocol: RKC standard communication (ANSI), MODBUS-RTU
  Maximum connection: 16
• General Specification
  Power supply voltage (Rating): 24V dc
  Ambient temperature: -10 to 50°C
  Weight: Approx.130g
  Safety standards:
  1) UL　UL61010-1
  2) cUL　CAN/CSA-22.2 NO.61010-1
  3) CE Marking: Low Voltage Directive (LVD)　EN61010-1                                                                                                                   EMC Directive　EN61326-1
  4) RCM　EN55011

COM-ML-4（PROFINET）

• Network communication
  PROFINET
  Physical layer: 100BASE-TX
  User layer: PROFINET
  Conforming network : PROFINET IO communication
• Host communication
  Interface: RS-485 / RS-422A
  Protocol: RKC standard communication (ANSI), MODBUS-RTU
  Maximum connection: 16
• General Specification
  Power supply voltage (Rating): 24V DC
  Ambient temperature: 0 to 50°C
  Weight: Approx.250g
  Safety standards:
  1) UL　UL61010-1
  2) cUL　CAN/CSA-22.2 NO.61010-1
  3) CE Marking: Low Voltage Directive (LVD)　EN61010-1                                                                                                                   EMC Directive　EN61326-1
  4) RCM　EN55011

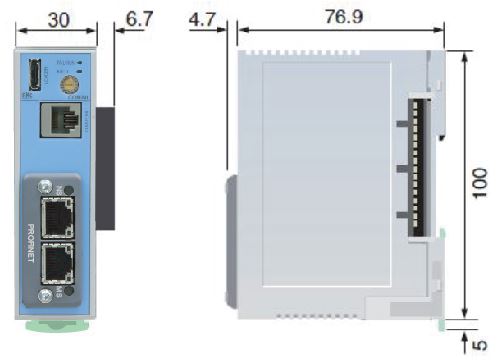

External dimensions
