Resin Pressure Sensors

Indicator for melt pressure sensors

  • Indicator with a built-in converter and a large LED display
  • Abundant optional function like communication and analog output
  • Resin pressure
  • Main features
  • Main specification
  • External dimensions
  • Models

Main features

Large LED display

Large high intensity LED display enables excellent visibility from a long distance.

Abundant inputs/outputs

Digital inputs, analog inputs, alarm outputs, and communication interface.

Main specification

  • Sensor type: Strain gauge sensor
  • Input range:
    1) Gain setting range of pressure sensor: 0.500 to 0.999mV/V
    -6.0mV to 15.9mV (including zero point correction range)
    2) Gain setting range of pressure sensor: 1.000 to 1.999mV/V
    -9.8mV to 25.9mV (including zero point correction range)
    3)Gain setting range of pressure sensor: 2.000 to 2.999mV/V
    -12.3mV to 32.6mV (including zero point correction range)
    4)Gain setting range of pressure sensor: 3.000 to 4.000mV/V
    -16.1mV to 42.5mV (including zero point correction range)
  • Sampling time: 0.1 sec.
  • Accuracy and linearity: ±0.1% of span
  • Contact input:
    Number of inputs: 3 points, Functions: Auto zero, Hold reset, Alarm interlock release
    Input method: Dry contact input

<Optional functions>

Alarm type: Process alarm high, Process alarm low (wait function, timer setting, energize/deenergize selectable)
Output method: Relay contact output, 1a contact

  • Analog output: 1 point
    Output type: Measured value (programmable)
    Output signal: 0 to 1V, 0 to 5V, 1 to 5V, 0 to 10V, 0 to 10mV, 0 to 100mV
    0 to 20mA, 4 to 20mA
  • Communication interface: RS-485 / RS-422A

<General specifications>

  • Power supply voltage (Rating): 100 to 240Vac /24Vac /24Vdc
  • Ambient temperature: -10 to +50°C
  • Weight: Approx. 200g
  • Safety standards:UL UL61010-1

cUL CAN/CSA-22.2 No.61010-1

CE marking:Low Voltage Directive (LVD)EN61010-1

EMC Directive: EN61326-1

RCM: EN55011

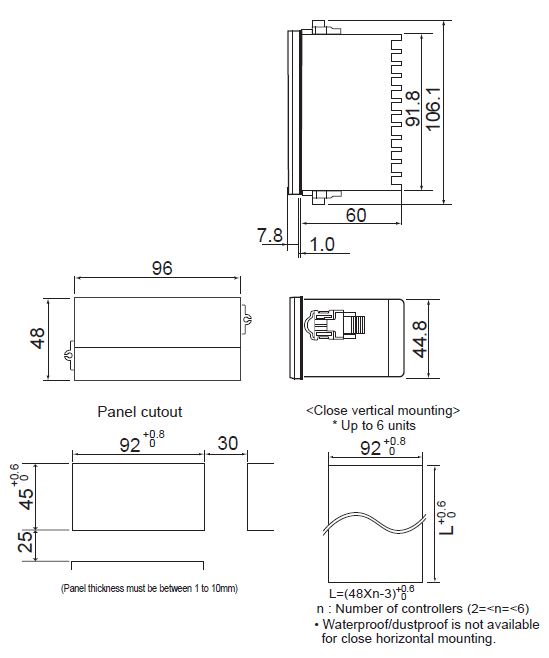

External dimensions
