Hand Held Temperature Indicators

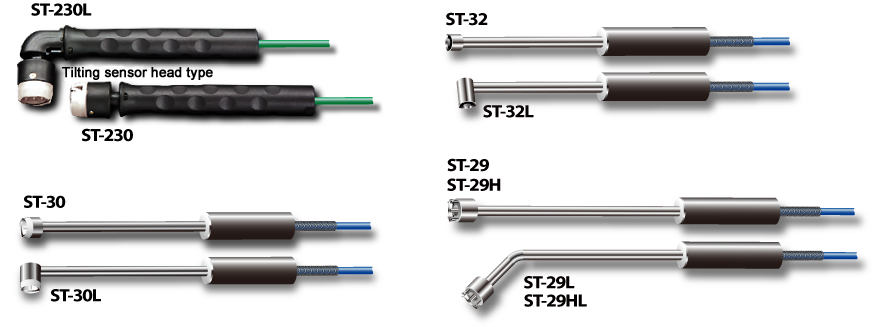

Handheld temperature sensors (for stationary surface)
Handheld temperature sensors (for stationary surface)

ST-230 / ST-230L

  • Max. measuring temperature: 300°C
  • Tilting head type
  • Hand grip with dimples

ST-30 / ST-30L

  • Max. measuring temperature: 300°C
  • Small sensing head

ST-32 / ST-32L

  • Max. measuring temperature: 600°C
  • Stainless sensing head

ST-29 / ST-29L  ST-29H / ST-29HL

  • Max. measuring temperature: 800°C (ST-29 / ST-29L),1100°C (ST-29H / ST-29HL)
  • Stainless sensing head (special type)
  • Temperature
Download
  • Main features
  • Main specification
  • External dimensions
  • Models

Main features

ST-230 / ST-230L
Tilting head type for measuring surface temperature accurately

The tilting head allows tight contact with the measured object for accurate surface temperature measurement.

　

The dimpled grip fits into your hand (even with a glove) for stable measurement.

ST-30 / ST-30L
The small head of this sensor is suitable for measuring surface temperature of a small object or in a small space.

The sensing head of this sensor uses stainless steel for durability at high temperatures.

ST-32 / ST-32L
The stainless steel made sensing head is suitable for measuring high temperatures.

The stainless steel made sensing head is suitable for measuring high temperatures.

ST-29 / ST-29L、ST-29H / ST-29HL
Sensors for high temperature range with enhanced high temperature durability

The stainless steel made head with guide pins enables high durability against high temperatures.
　

ST-29 / ST-29L are used for measuring temperature up to 800°C
ST-29H / ST-29HL are used for measuring temperature up to 1100°C.

Main specification

ST-230 / ST-230L

  • Response time (Metal surface): 1.1 sec.(99% indication), 0.45 sec. (90% indication)
  • Resistance of sensor with a leadwire 1 meter: 7.7Ω
  • Accuracy (*): ±1.3°C or ±1.3% of the measured temperature
  • Cable end: 3C connector (for DP-350), 6C connector (for DP-700) ※Please specify the cable end style at the time of ordering.

ST-30 / ST-30L

  • Response time (Metal surface): 0.6 sec. (95% indication)
  • Time constant (Metal surface): 0.2 sec. (63% indication)
  • Resistance of sensor with a leadwire 1 meter: 8Ω
  • Accuracy (*)：±0.5% ±1°C
  • Cable end: 3C connector (for DP-350), 6C connector (for DP-700) ※Please specify the cable end style at the time of ordering.

ST-32 / ST-32L

  • Response time (Metal surface): 0.7 sec. (95% indication)
  • Time constant (Metal surface): 0.2 sec. (63% indication)
  • Resistance of sensor with a leadwire 1 meter: 7.5Ω
  • Accuracy (*)：±0.5% ±1°C
  • Cable end: 3C connector (for DP-350), 6C connector (for DP-700) ※Please specify the cable end style at the time of ordering.

ST-29 / ST-29L

  • Response time (Metal surface): 0.5 sec. (95% indication)
  • Time constant (Metal surface): 0.1 sec. (63% indication)
  • Resistance of sensor with a leadwire 1 meter: 10Ω
  • Accuracy (*)：±0.3% ±1°C
  • Cable end: 3C connector (for DP-350), 6C connector (for DP-700) ※Please specify the cable end style at the time of ordering.

ST-29H / ST-29HL

  • Response time (Metal surface): 1.5 sec. (95% indication)
  • Time constant (Metal surface): 0.4 sec. (63% indication)
  • Resistance of sensor with a leadwire 1 meter: 2Ω
  • Accuracy (*)：±0.5% ±1°C
  • Cable end: 3C connector (for DP-350), 6C connector (for DP-700) ※Please specify the cable end style at the time of ordering.

(*) Accuracy when a temperature of copper surface of 100°C is measured.

External dimensions

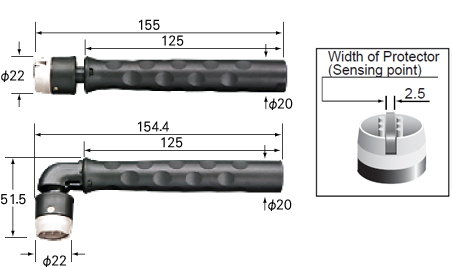

ST-230/230L



ST-30/30L



ST-32/32L



ST-29/29L　ST-29H/29HL

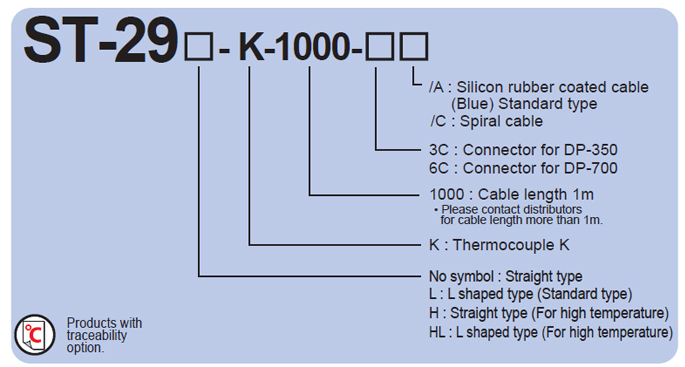

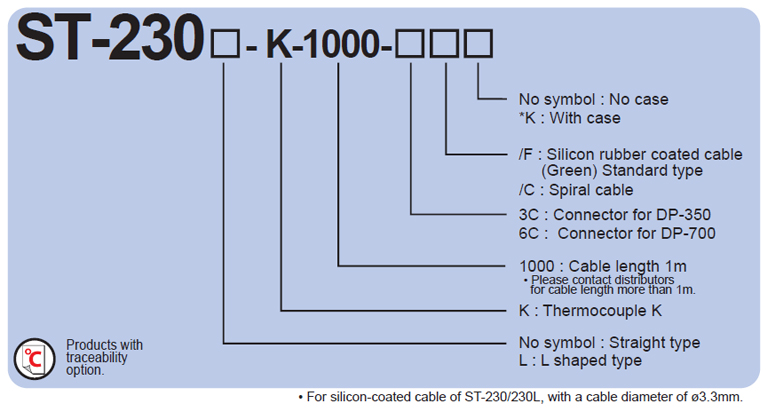

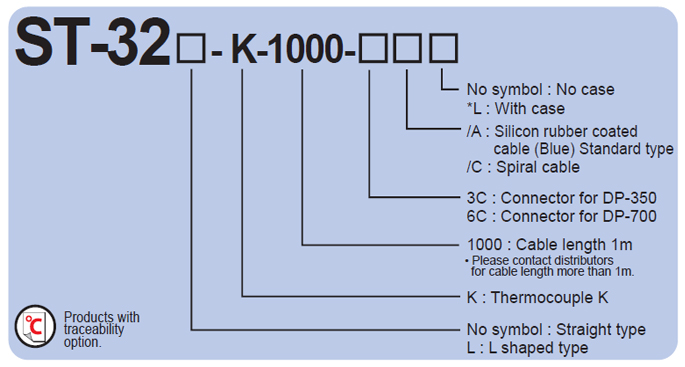

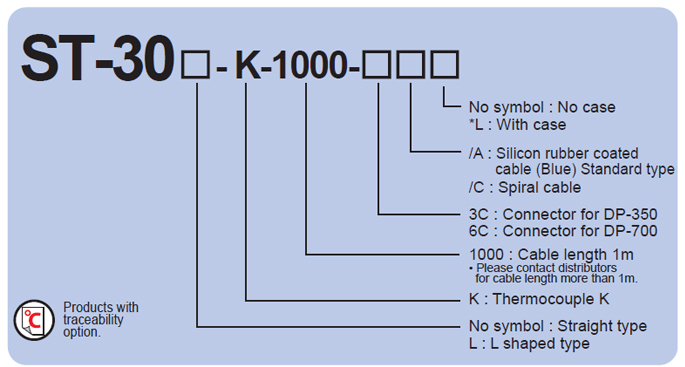

Models
