RZ series（RZ100 / RZ400）

  • Universal Input
    (Selectable from Thermocouple, RTD Pt100)
  • Measurement accuracy: ±0.2% of displayed value
  • Sampling time: 0.25 sec.
  • Loader communication
  • Plug-in construction
  • Temperature
Download
  • Main features
  • Main specification
  • External dimensions
  • Models

Main features

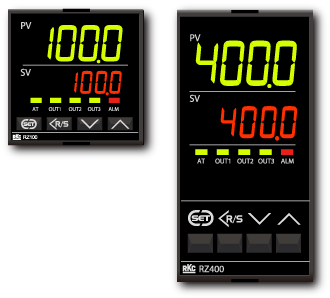

Large high-intensity LED display

Large high-intensity LED display easy to read from a distance

Configuration data management software (PROTEM2) is available

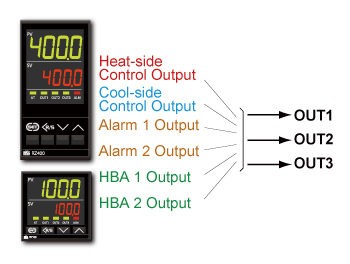

Available with two relay outputs/voltage pulse/current outputs, and one relay output

Each output can be assigned to Control output (heat/cool), Alarm 1 output, Alarm 2 output, HBA1 output, or HBA2 output.

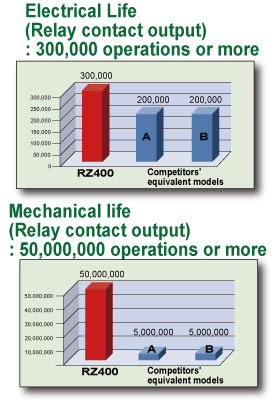

Long operating life

Long life high performance relays are used (OUT1 and OUT2 of RZ400)

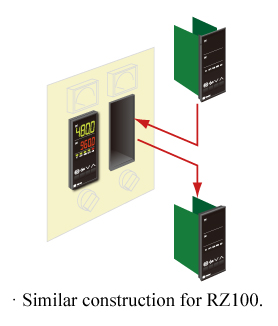

Plug-in construction for easy replacement

Plug-in construction allows replacement of internal assembly from the front of the panel for easy maintenance.

Main specification

  • Number of Inputs :1 point
  • Input type : ※See the Input Range Code for the input range.

Group 1: Thermocouple　K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII

Group 2: RTD Pt100, JPt100

  • Sampling time : 0.25 sec.
  • Measurement accuracy: ±(0.2% of displayed value+1 digit)　※Depends on the input and the range.
  • Outputs (OUT: Max.3 points)　※Control, Temperature alarm, HBA (Heater Break Alarm), or LBA (Control loop break alarm) can be assigned.

1）Relay contact output (A) : OUT2 of RZ400　1a contact　※Highly durable relays are used

2）Relay contact output (B) : OUT2/3 of RZ100, OUT3 of RZ400: 1a contact

3）Voltage pulse for SSR driving: 0/12V dc

4）Current output : 0 to  20mA,  4 to 20mA dc

  • Alarm function (Max.2 points) : Temperature Alarm, HBA (Heater Break Alarm), or LBA (Control Loop Break Alarm) can be assigned.

<Options>

  • Outputs 2 and 3（OUT2 and 3）　※Control, Temperature alarm, HBA (Heater Break Alarm), or LBA (Control loop break alarm) can be assigned.

1）Relay contact output (A) : OUT2 of RZ400　1a contact　※Highly durable relays are used

2）Relay contact output (B) : OUT2/3 of RZ100, 　OUT3 of RZ400: 1a contact

3）Voltage pulse for SSR driving: 0/12V dc

4）Current output : 0 to 20mA,  4 to 20mA dc

  • CT input for Heater Break Alarm : Max. 2 points
  • Communication Function: Communication method RS-485

<General Specification>

  • Power supply voltage (Rating): 100 to 240V ac
  • Ambient temperature: -10 to +55°C
  • Weight:

RZ100:  Approx.115g
RZ400:  Approx.165g

  • Safety standards:

UL:  UL61010-1
cUL:  CAN/CSA-22.2 NO.61010-1
CE Marking:

Low Voltage Directive (LVD)　EN61010-1
EMC Directive　EN61326-1

RCM:  EN55011

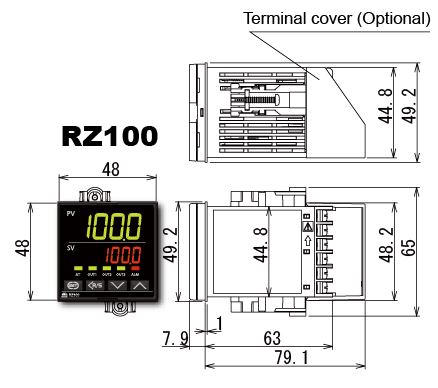

External dimensions

Unit : mm

Models

RZ100 / RZ400
