PLC communication converter
COM-JE

  • Converter for connecting FB series and RB series to Mitsubishi PLC.
  • Communication
Download
  • Main features
  • Main specification
  • External dimensions
  • Models

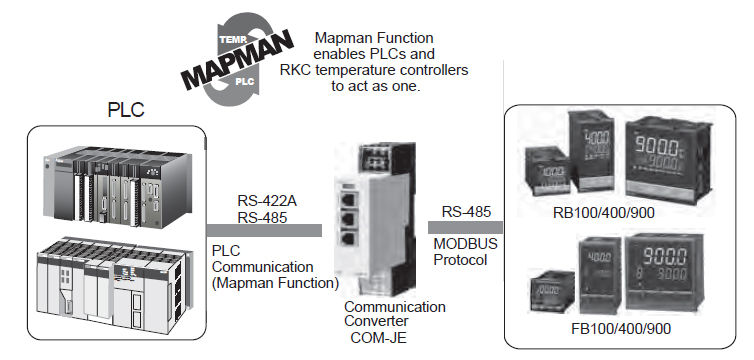

Main features

COM-JE
PLC communication converter

Programmingless connection to PLC.

COM-JE becomes a Master station and sets the data of temperature controllers into the registers of PLC.

Easy handling of data only by command operations of PLC registers.

Supported models: FB100 / FB400 / FB900/ RB100 / RB400 / RB500 /RB700 / RB900



Main specification

PLC communication

  • Interface: RS-422A / RS-485
  • Protocol: Dedicated protocol for Mitsubishi Electric MELSEC series, (A-compatible 1C frame (format 4))
    ACPU common commands (WR/WW) (A series, FX2N, FX2NC series)
    AnA/AnUCPU common commands (QR/QW) (AnA/QnA series, Q series)
    – QnA-compatible 3C frame format 4
    Commands (0401/1401) (QnA series, Q series)
  • Protocol dedicated for Omron SYSMAC series (C Mode command (RD/WD/RE/WE))
  • Communication speed: 9600 bps, 19200 bps, 38400 bps
  • Maximum connection: 4 COM-JE to a single communication port of PLC
  • Host communication
  • Interface: Conforming to RS-422A / RS-232C(RS-232C when COM PORT1 is used)
  • Protocol: RKC communication (ANSI), MODBUS-RTU
  • Communication speed: 9600 bps, 19200 bps, 38400 bps
  • Maximum connection: RS-422A (16), RS-232C (1)

Controller communication

  • Interface: RS-485
  • Protocol: MODBUS-RTU
  • Communication speed: 9600 bps, 19200 bps, 38400 bps
  • Maximum connection: 31
  • General Specification
  • Power supply voltage (Rating): 24V DC
  • Ambient temperature: -10 to 50°C
  • Weight: Approx.170g

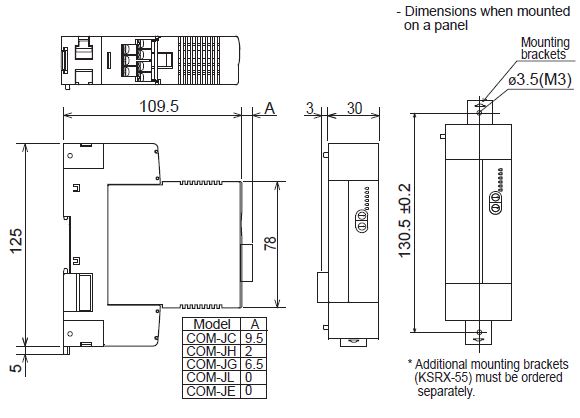

External dimensions

Models
