Single Phase Power Controller
THV-A1

  • Maximum load capacity: 20A, 30A, 45A, 60A, 80A, 100A, 150A, 200A (AC)
  • Supply voltage: 100 to 240V ac
  • Control method: Phase control, Zero-cross control
  • Constant current control, Constant voltage control, constant power control
  • Easy setup using keypad and front display
  • Conforming to UL and CE Marking
  • Temperature
Download
  • Main features
  • Main specification
  • External dimensions
  • Models

Main features

Digital control provides excellent response and reproducibility

Digital control power controller with a front display and a keypad.

Setting zero for Soft-Start/Soft-Down provides quick response suitable for rapid thermal processes.

Capable of controlling heaters with special characteristics

Since the following control modes (Constant voltage control, Constant current control, Constant power control) are available, this power controller can control heaters in which resistance value greatly changes according to temperature change. Such heaters include Superkanthal and SiC heaters.

Multimemory area function

Four patterns of various set values for heater break can be stored in multimemory area function, which enables easy change of heater break alarm setting.

Released from the restriction of magnetic flux density of the transformer, the controller has realized downsizing of transformer (Optional)

The control function of the primary side of transformer can suppress excessive current generated from momentary power failure on the load (transformer) side. To control the primary side of the transformer, it is recommended to use a power controller with a protection function for primary side control of transformer. This will remove the restriction of magnetic flux density of the transformer.

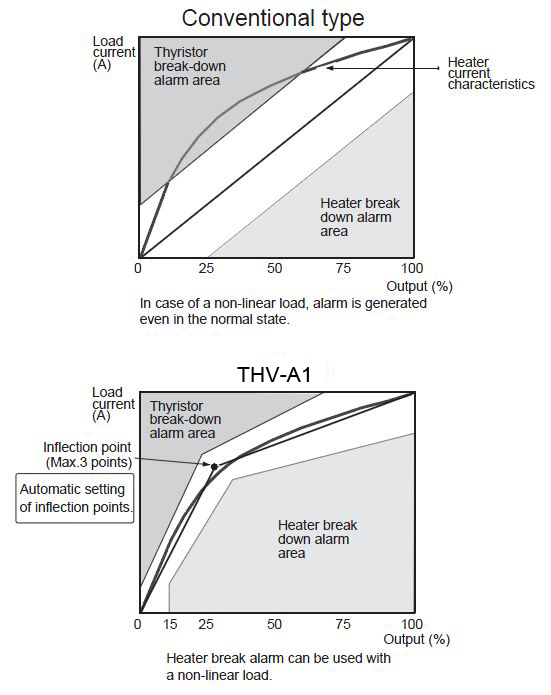

Capable to detect a heater break of non-linear load

A maximum of three inflexion points are settable according to the heater characteristics. This enable the controller to be used with a lamp heater, for example, which has large resistance fluctuation by temperature.

Automatic setting of Inflexion points is available.

Main specification

  • Control method: Phase control/Zero-cross control (switchable)
  • Maximum load capacity: 20A, 30A, 45A, 60A, 80A, 100A, 150A, 200A (AC)
  • Applicable load: Linear load (R:Resistance) (when in phase control: Primary side control of transformer is available. ※1 See Protection function of primary side control of transformer
  • Input signal:

1) Group 1 (configurable within the group)

4 to 20mA, 0 to 20mA, 0 to 5V, 1 to 5V, 0/12V, Dry contact input

2) Group 2 (configurable within the group)

0 to 10V, 0/12V, 0/24V, Dry contact input

  • Output mode: Constant voltage control, Phase angle proportional, Voltage proportional, Proportional square voltage, Square voltage feedback, Constant current control (optional), Constant power control (optional)
  • Power supply frequency: 50/60Hz (automatically selected)
  • Standard functions:
  • Auto/Manual switch-over (External manual setting is optional),
  • Ramp setting function (External setting is optional),
    Soft-Start/Soft-down function, External contact input (DI) 3 points,
    On/Off control (external high limit and low limit setting are optional)

<Optional functions>

  • Alarm output 2 points, Heater break alarm (Memory area: 4 points), Current limiter, Heat sink temperature error (standard for 150A and 200A types), Communication interface RS-485 / 422A

<General Specification>

  • Ambient temperature: Guaranteed performance range: 0 to 40°C, Operation guarantee range -15 to +55°C
  • Power supply voltage (Rating): 100 to 240V ac
  • Weight:
    20A/30A types approx.1.4 kg, 45A/60A types approx.1.6kg, 80A/100A types approx.2.4kg, 150A/200A types Approx.4.5kg
  • Safety standards:

20A, 30A, 45A, 60A, 80A, 100A types:

UL　UL61010-1
cUL　CAN/CSA-C22.2 No.61010-1
CE Marking
Low Voltage Directive (LVD): EN61010-1, Overvoltage category II　　EMC Directive: EN60947-4-3※ Specified noise filter must be used (Soshin Electric)

20A/30A types: HF2030A-UP,
45A type: HF2050A-UP,
60A type: HF2060A-UP,
80A type: HF2080A-UP,
100A type: HF2100A-UP

150A, 200A types:

UL　UL508
cUL:CAN/CSA-C22.2 No.14※150A and 200A types are not conforming to CE Marking.

※1: Protection function for primary side control of transformer.
To control the primary side of the transformer, it is recommended to use a power controller with a protection function for the primary side control of a transformer.
The control function of the primary side of transformer can suppress excessive current generated from momentary power failure on the load (transformer) side.
When the protection function for the primary side control of transformer is not provided, excessive current may occur. Please be sure to use the transformer with magnetic flux density 1.25T or less.
Please also be sure to activate the Soft-Start function.

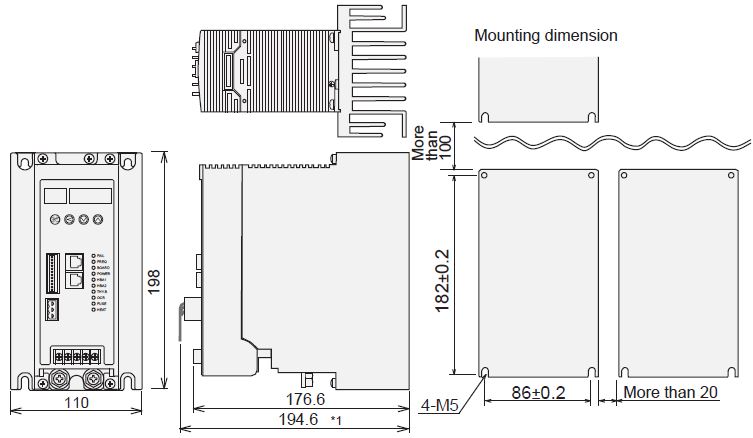

External dimensions

20A, 30A, 45A, 60A type

a
80A, 100A type


a
150A, 200A type

Models
