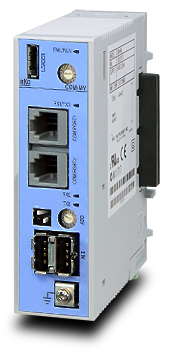

COM-MY
MECHATROLINK Communication Converter

Communication converter to connect our SRZ series to MECHATROLINK.

Supported models: SRZ (Z-TIO-A / Z-TIO-B、Z-DIO)

Main specification

  • Network communication
    Protocol: MECHATROLINK-II/I (to be selected)
    < MECHATROLINK-II>
    Communication speed: 10M bps
    Maximum transmission distance: 50m
    Minimum transmission distance: 50cm
    Number of slave stations: 30
    Connection method: Bus
    Transmission cycle: 1ms to 8ms (to be selected by Master station)
    Communication method: Master/Slave fully synchronous
    Encoding: Manchester encoding
    Data length: 17 bytes / 32 bytes (to be selected)
    Isolation of transmission route: Isolation by transformer
    ASIC used: JL-052
    < MECHATROLINK-I>
    Communication speed: 4m bps
    Maximum transmission distance: 50m
    Minimum transmission distance: 30cm
    Number of slave stations: 15 (14 if the Master is JL-080)
    Connection method: Bus
    Transmission cycle: 2ms
    Communication method: Master/Slave fully synchronous
    Encoding: Manchester encoding
    Data length: 17 bytes
    Isolation of transmission route: Isolation by transformer
    ASIC used: JL-052
    Station type: Slave station
    Communicatable data: Same as host communication.
  • Host communication
    Interface: RS-485 / RS-422A
    Protocol: RKC standard communication (ANSI), MODBUS-RTU
    Maximum connection: 16
  • General Specification
    Power supply voltage (Rating): 24V dc
    Ambient temperature: -10 to 50°C
    Weight: Approx.120g
