Main features

The PFA protection tube offers strong resistance
to chemicals

　The PFA protection tube offers strong resistance
　to chemicals.

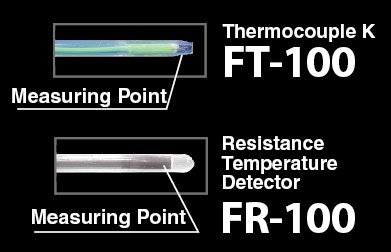

　Thermocouple K or Resistance Temperature

　Detector selectable.

Reference:
Teflon® is a brand name for fluoropolymers, such as PTFE (Polytetrafluoroethylene).
Teflon® is a registered trademark of The Chemours Company (DuPont).
FT-100/FR-100 utilizes PFA (Perfluoroalkoxy alkane) fluoropolymer.

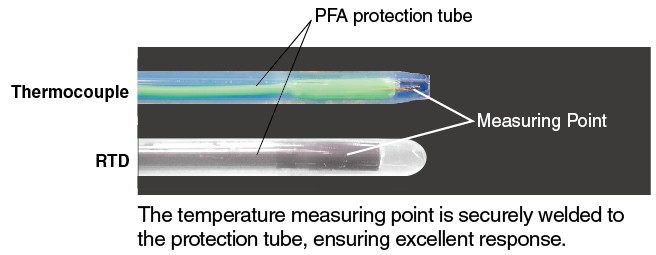

Excellent response

Meets Semiconductor Manufacturing Process Requirements

Ultrasonic cleaning with clean packing is available. (Optional)

We can customize the lengths for your needs

We can manufacture products with your desired protection tube length (up to 5,000 mm) and
lead wire length (up to 9,000 mm).

*Note:

The total length (protection tube + lead wire) is limited to a maximum of 10,000 mm (10 m).
For other dimensions, please feel free to contact us.

Main specification

Thermocouple K
FT-100

Type: Thermocouple K Class 1（JIS C 1602-1995）
Measuring range: 0～200℃
Accuracy: ±1.5℃
Protection tube material: PFA
Lead wire diameter: 1.0×1.6mm
Lead configure: φ0.32mm×1
Lead coating material: PFA
Standard diameter of protection tube: 250～5000mm
Standard diameter of lead wire: 500～9000mm

Resistance Temperature Detector
FR-100

Type: Pt100 at 0℃ Class A（JIS C 1604-1997）
Measuring range: 0～200℃
Accuracy: ±（0.15＋0.002|t|）℃     (t : Measured temperature）
Protection tube material: PFA
Lead wire diameter: φ1.7mm
Lead configure: φ0.1mm×7
Lead coating material: PFA
Standard diameter of protection tube: 250～5000mm
Standard diameter of lead wire: 500～9000mm

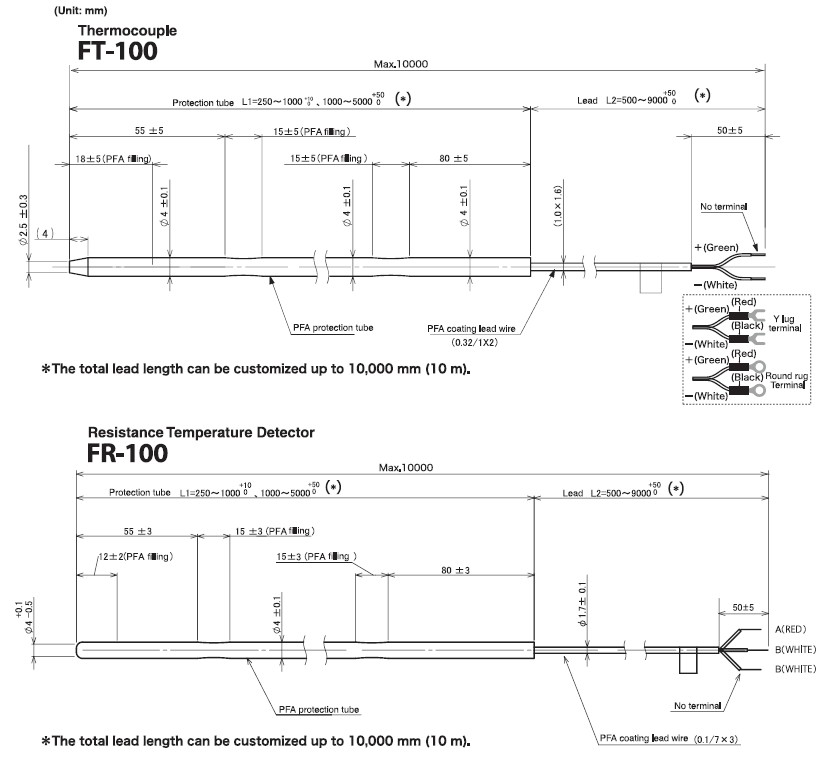

External dimensions

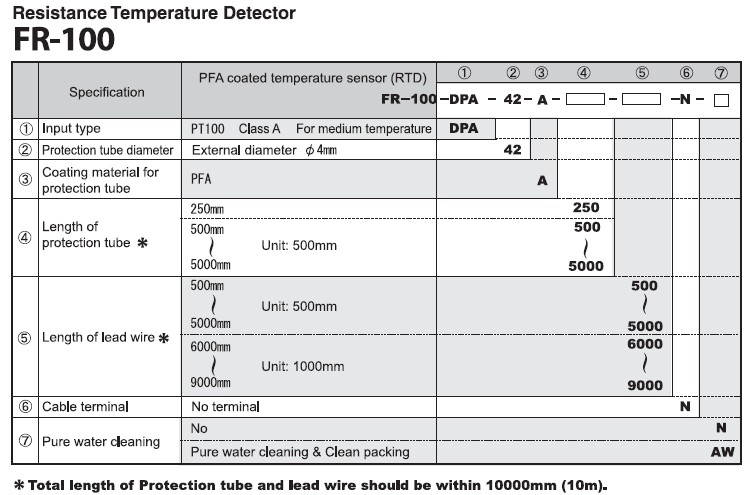

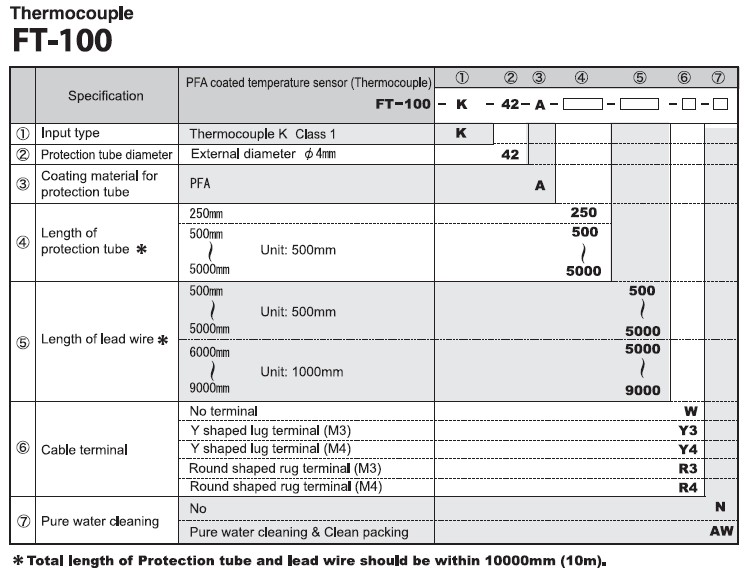

Models
